How to Extend Hard Drive in Windows

16min

Introduction

Managing disk space effectively is a crucial task on Windows Server. The File and Storage Services feature in Server Manager provides an intuitive way to resize volumes, whether you need to expand or shrink a drive. This guide walks you through the process. NOTE: To fully apply your upgrade, first shut down your OS, power off the server from the portal, and then power it back on through the portal. This process ensures the system recognizes the updated drive specifications.

Keep in mind, the additional space will remain unavailable until you resize your disk or partition. Reformatting is only necessary if you intend to create a new partition.



How to Resize a Hard Drive

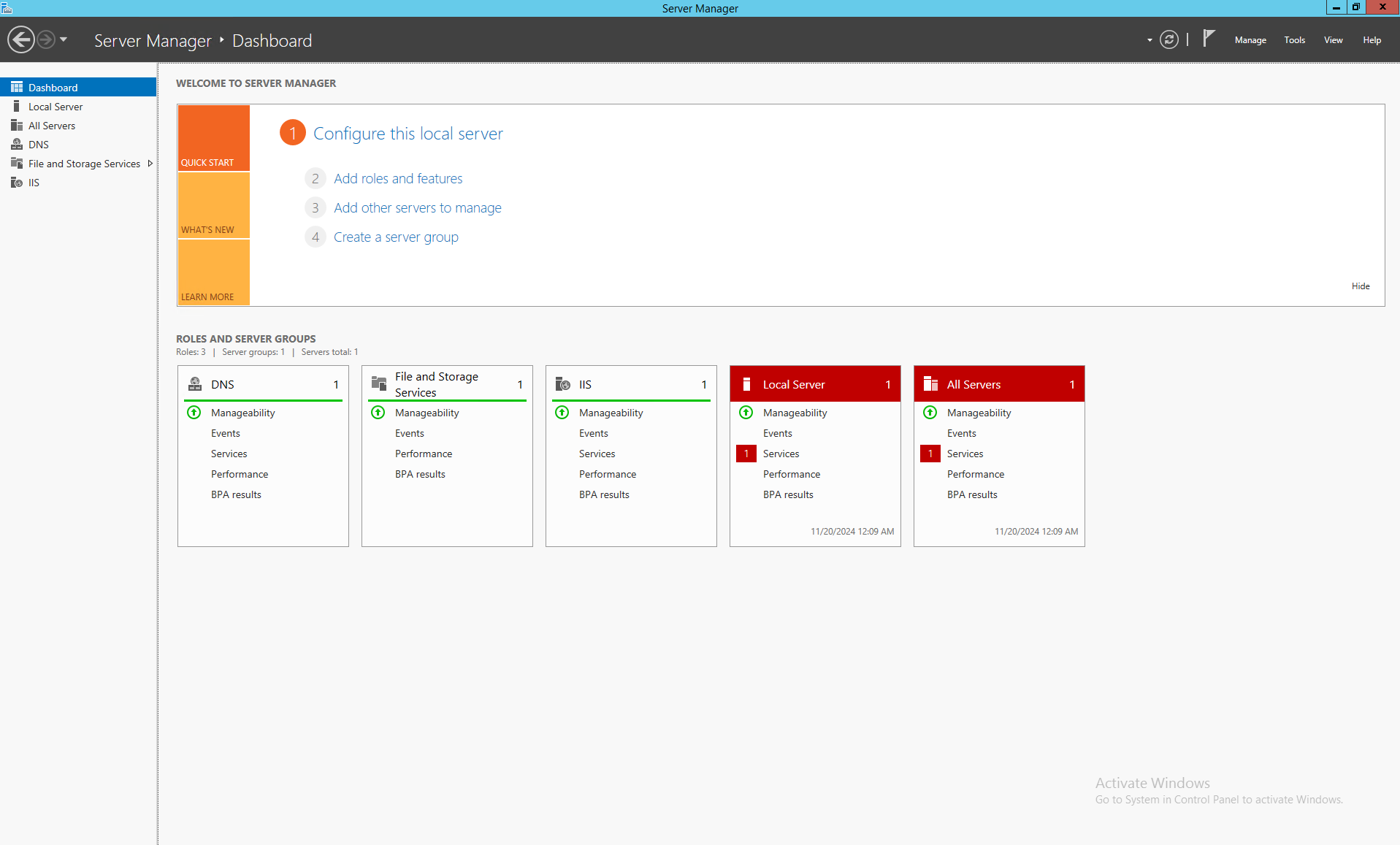

Step 1: Accessing Server Manager

  1. Log in to the Server: Access your server via Remote Desktop or the local console.
  2. Open Server Manager:
    • Click on the Start button and select Server Manager.
    • If it doesn’t open automatically, search for ServerManager.exe and run it.
Document image

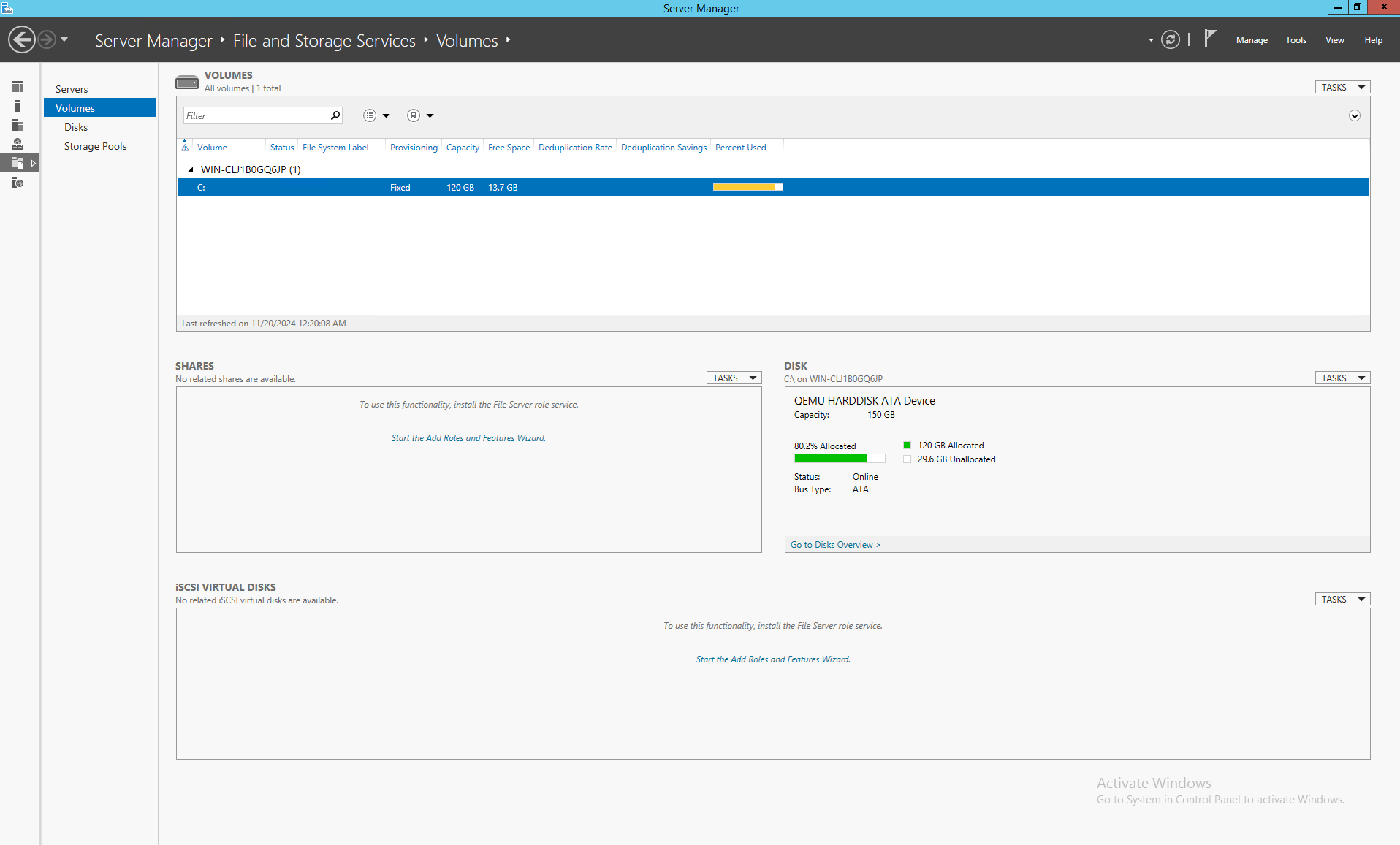

Step 2: Navigate to File and Storage Services

  1. In the Server Manager dashboard, select File and Storage Services from the left-hand panel.
  2. Click on Volumes to display all configured drives on your server.
Document image

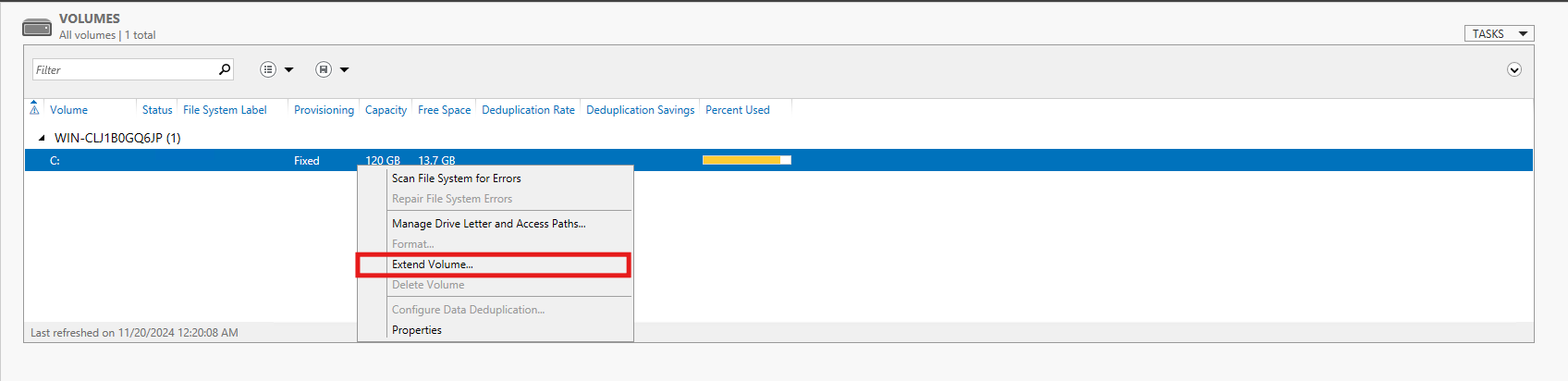

Step 3: Select the Target Volume

  1. In the Volumes section, locate the drive you want to resize.
  2. Right-click the drive and choose:
    • Extend Volume to increase its size.
    • Shrink Volume to reduce its size.
Document image

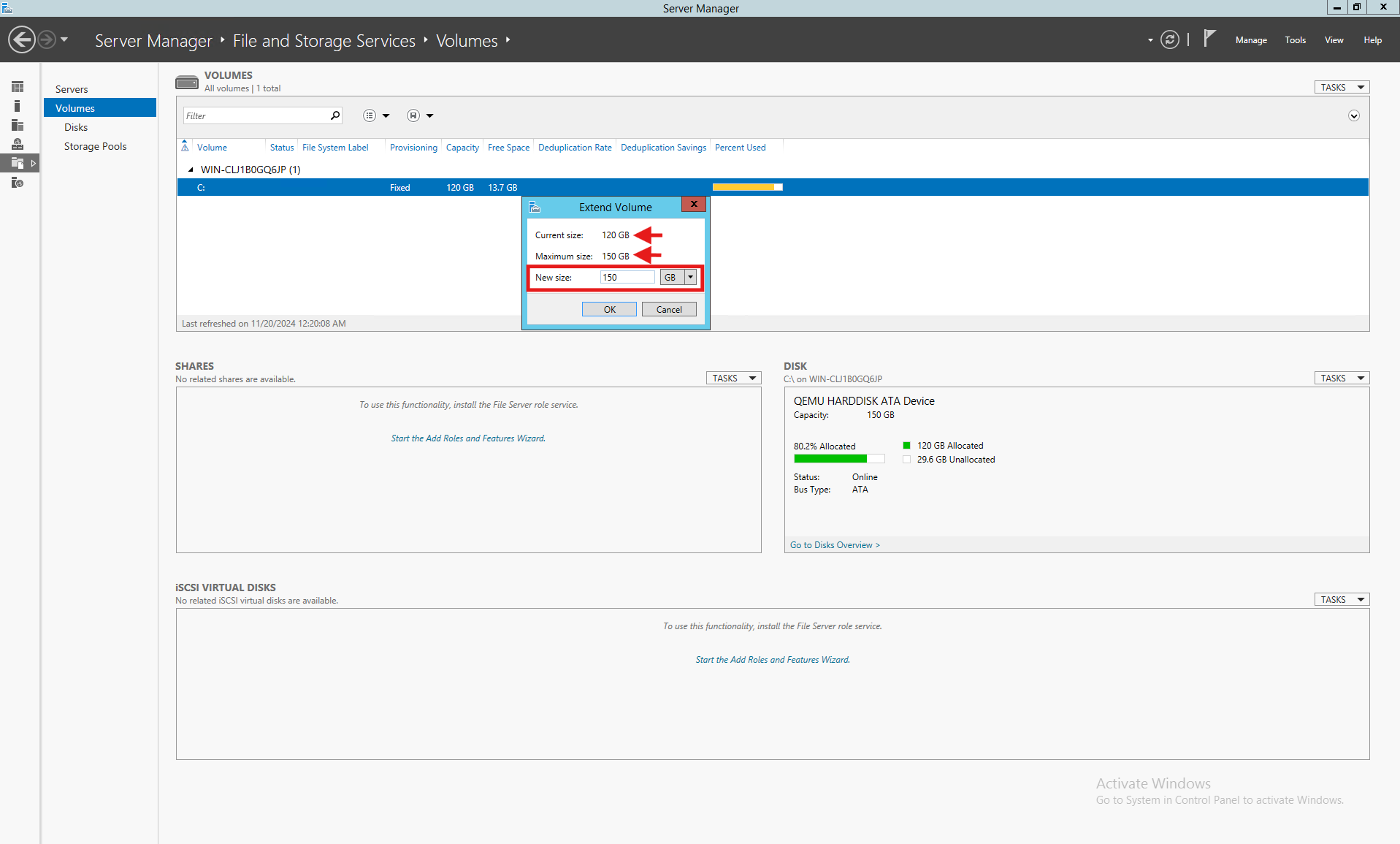

Step 4: Extending a Volume

  1. If there’s unallocated space available on the disk:
    • Selecting Extend Volume will launch a wizard that allows you to allocate the unused space to the volume.
  2. Specify the amount of space to add to the volume.
  3. Click OK to apply the changes.
Document image



Step 5: Shrinking a Volume

  1. To shrink a volume, right-click the desired drive and select Shrink Volume.
  2. Enter the amount of space you want to reduce from the drive.
  3. Click OK.
  4. The freed-up space will appear as Unallocated Space.

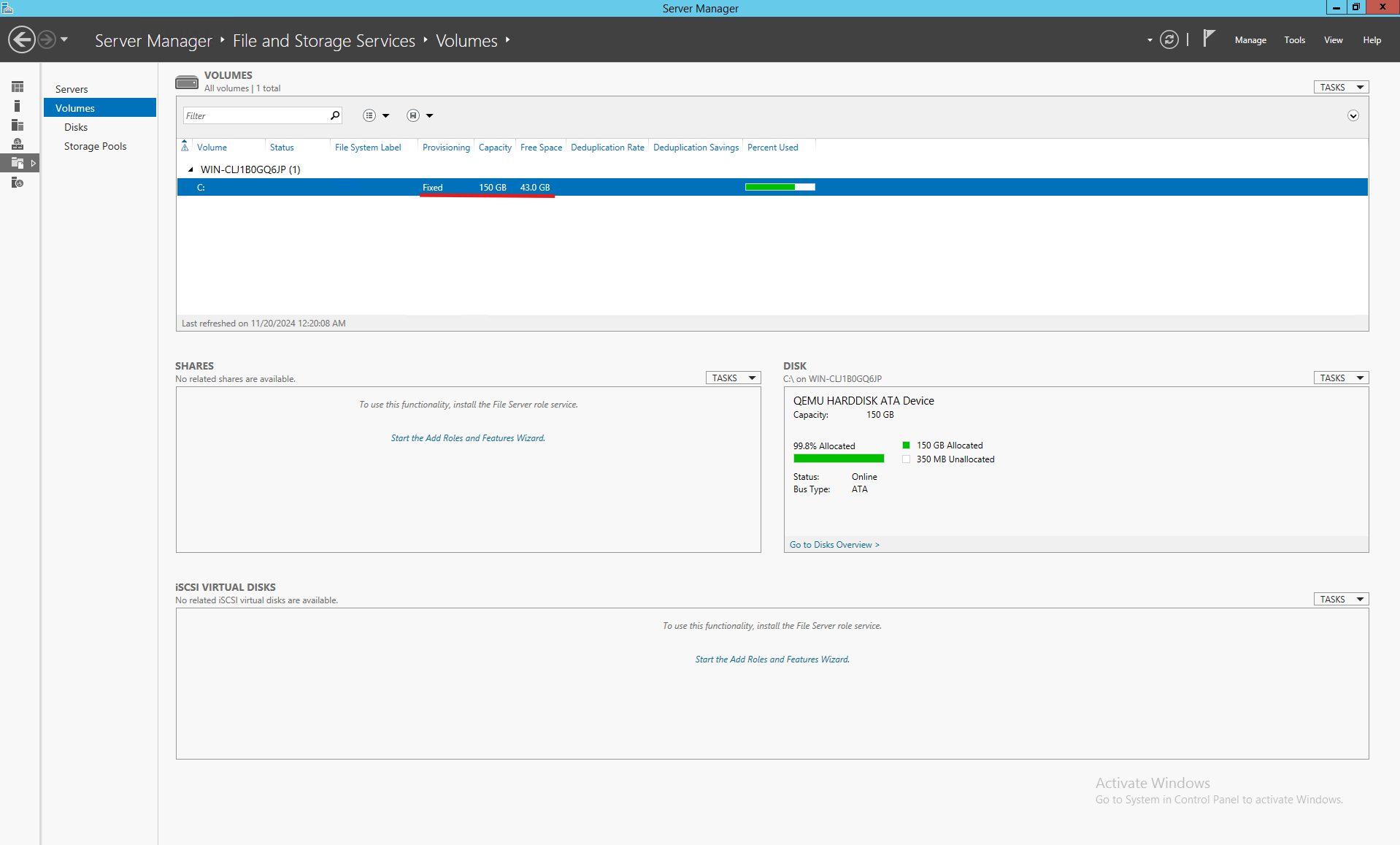

Step 6: Verify Changes

  1. Return to the Volumes section in Server Manager to confirm the updated volume size.
  2. For a more detailed view, you can use Disk Management.
Document image



Important Notes

  • Backup Data: Always back up important data before making any changes to the disk.
  • Unallocated Space Requirement: To extend a volume, unallocated space must exist on the same disk and be contiguous with the target volume.
  • In-Use Volumes: If the volume is in use by active services or applications, a restart may be required.


Common Issues and Solutions

  1. Extend Volume is Grayed Out: This occurs when there’s no contiguous unallocated space next to the volume.
    • Consider using advanced tools to move or merge partitions.
  2. Limited Shrink Volume:
    • System files or reserved partitions can limit how much space you can shrink.
    • Use advanced tools like Diskpart for further management.


Alternative Tools

If File and Storage Services cannot meet your requirements:

  • Use Disk Management for basic disk operations.
  • Use Diskpart or PowerShell for advanced disk management.
  • Consider third-party software such as MiniTool Partition Wizard or EaseUS Partition Master.
